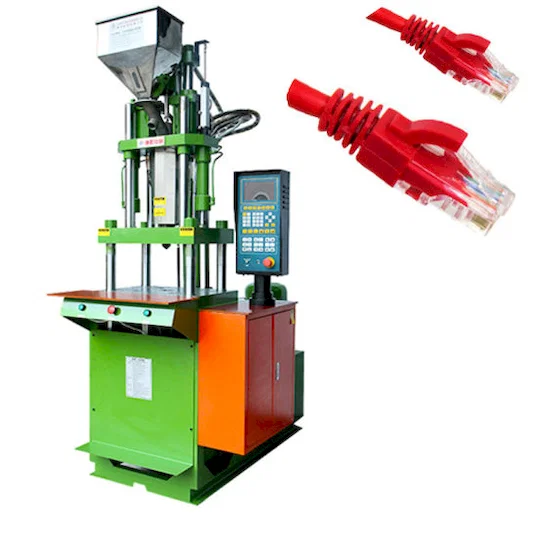

Machine de Moulage par Injection Verticale 5,5T WPM-701-5.5T

Name: Machine de Moulage par Injection Verticale 5,5T WPM-701-5.5T
Brand: JINGWEI
SKU: WPM-701-5.5T
Availability: InStock
Rating: 5 (1 reviews)

Modèle de produit: WPM-701-5.5T
Spécifications
Modèle: WPM-701-5.5T
Force de serrage: 55 tonnes
Diamètre de vis: ¢32 / ¢35 / ¢42 mm
Poids d'injection max (PS): 102 / 123 / 176 g
Course de vis: 140 mm
Vitesse de rotation de vis: 0-190 tr/min
Force de contact de buse: 5,5 tf
Course d'ouverture: 200 mm
Espace moule: 670x480 mm
Épaisseur min. du moule: 250/200 mm
Force d'éjection hydraulique: 1,5 tonnes
Course d'injecteur: 35 mm
Pression d'injection: 1642 / 1385 / 960 kg/cm²
Capacité du réservoir d'huile: 150 L
Moteur d'entraînement: 12 kW
Dimensions: 2x1,4x3,3 m
Poids: 3300 kg
Demander un devis

Vertical Type Injection Moulding Machine WPM-701-5.5T
Injection Moulding Machine, Plastic Injection Moulding Machine, Vertical Injection Molding Machine
Description:
1. WPM-701-5.5T vertical injection molding machine lock mold/vertical to cast, IS suitable for the common electric appliance plug, the electronic components, and so on small inlays to take shape.
2. Two(three sections)the temperature control/projects the speed/back pressure and so on not to have the section adjustment, suits components of the precise vertex to take shape.
3. WPM-701-5.5T injection molding machine fast lock mold/low pressure idling speed closes the mold, locks the mold exceptionally when then Automatically tight open the mold. This special safe design, and so on can get up the protective function to the mold.
4. The stop-ping die fixed/op die activity type, takes shape inlays to have a very good localization in the mold. The end product has the fluid capping to leave the installment, the end product takes out extremely facilitates easily.
5. WPM-701-5.5T injection molding machine electrically controlled fitting/hydraulic pressure fitting uses the domestically produced nWPM-e brand The precise durable revolution noise is low. Locks mold strength 15TON - 55TON, has PLC to program- the Electrically controlled computer single to press the control or the computer entire program- the electrically controlled computer single to press the control or the computer entire proportion(ratio presses ratio to flow )controls three kinds, may supply the customer choice.
6. May supplement Sand up mold IS with double slippery mold 2S. Lets the operator has more convenient Production efficiency Gauguin security.

Specification
Model WPM-701-5.5T
Screw diWPM-enter (mm) ¢32 / ¢35 / ¢42
(PS)Max Injection weight (g) 102 / 123 / 176
(PS)Safe Shot Weight (oz) 3.6 / 4.3 / 6.0
Screw stroke (mm) 140
Screw speed rotation (r.p.m.) 0-190
Nozzle contact force (t f) 5.5
ClWPM-ping force (tons) 55
Opening stroke (mm) 200
Mold space (mm) 670x480
Min. thickness of mold (mm) 250/200
Hydraulic ejector force (tons) 1.5
Injector stroke (mm) 35
Injection pressure (kg/cm2) 1642 / 1385 / 960
Oil tank capacity (L) 150
Drive motor (kW) 12
Dimensions (L x W x H)M 2x 1.4x3.3
Weight (kg) 3300
